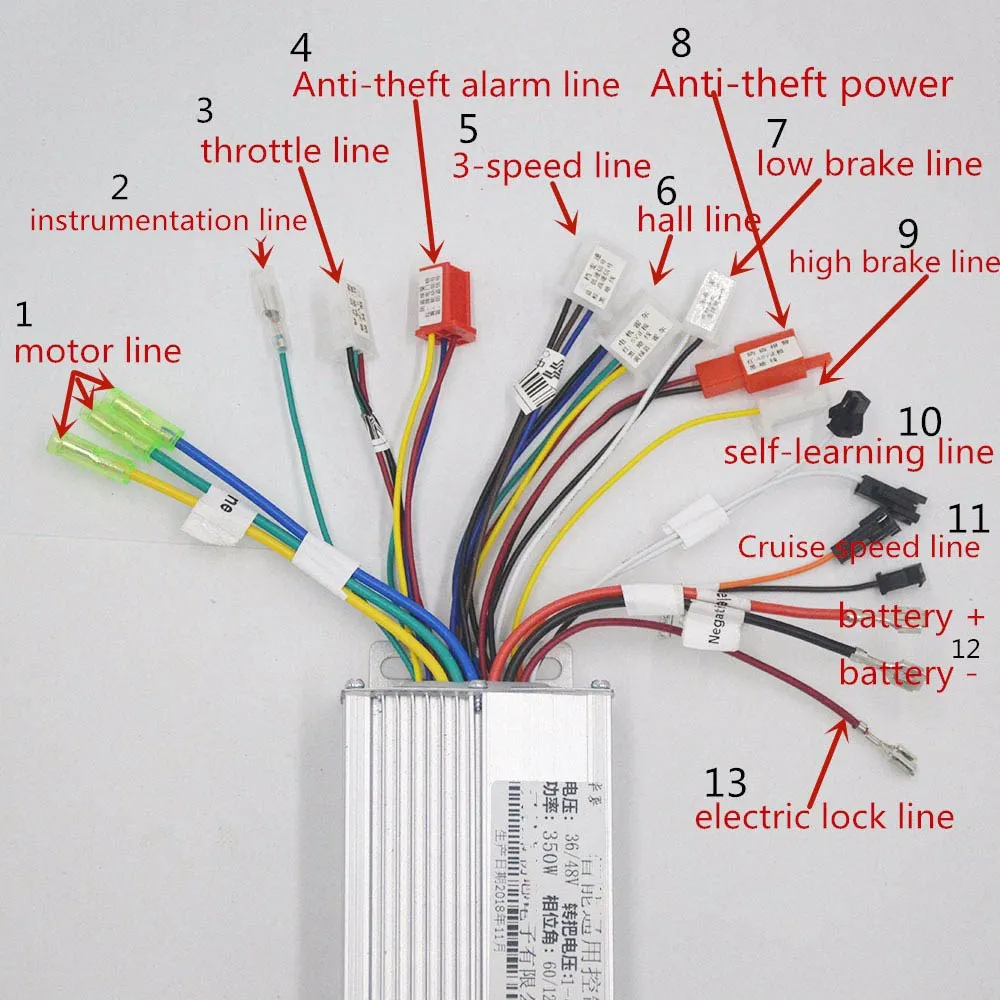

36V 48V 350W 17A BLDC Motor Controller Electric Bike Tricycle Controller This controller can work in hall sensor and also work in hall sensorless Rated Voltage: 36V/48V Low Voltage : 31V/42V±0.5V Rated Power: 350W (this controller fit 250W and 350W bldc motors) Limit Current: 18A 36V-48V 350W controller function 1.motor line 2.instrumentation line 3.throttle line 4.Anti-theft alarm line 5.3-speed line(standard: 60%-80%-100%) 6.hall line 7.low brake line 8.Anti-theft power line 9.high brake line 10.self-learning line 11.Cruise speed line 12.battery line(red:battery+, black:battery-) 13.electric lock line (1.Contact the motor line 2.Contact the battery line(red:+ , black:-) 3.contact the throttle line 4.Contact the hall line (1.Contact the motor line 2.Contact the battery line(red:+ , black:-) 3.contact the throttle line 4.Contact the hall line 5.Docking the two self-learning lines,twist display throttle, the wheel will forward or reverse. (1.if wheel forward ,Separate the self-learning line. 2.if wheel reverse, Separate the self-learning line. then Docking the self-learning line again.if wheel forward ,Separate the self-learning line.) 6.other functions can be connected as needed. Dear customers, please check the wiring photo before placing the order, if you do not know how to connect the wires or this controller not fit for your ebike, please do not place the order, thanks!
Sunday, February 2, 2020
36V 48V 350W 18A Dual Mode Brushless Controller Electric Bike Tricycle Controller Driver
Bosion 2G+32G Android 9.0 Car DVD Player For Suzuki Vitara Radio Bluetooth 3/4G WiFi SWC 2 din car radio GPS Navigation System
MEKEDE 2din Android 8.1 Car DVD multimedia Player For Greatwall Great wall Haval Hover H5 H3 with WIFI BT radio free shipping
Wholesale! Quad core android 8.1 smart car gps navigation dvd player for Mazda 3 2003-2009 support bluetooth wifi 3g camera dvr
7"Android 8.1 Radio For Mazda 3 2004-2008 video Wifi Bluetooth Car Player Navigation Radio 1GB RAM+16GB ROM WIFI GPS stereo FM
MARUBOX 706PX5 Universal 2 Din Car Multimedia player Octa Core Android 9.0, 4GB RAM, 32GB ROM,Radio chips TEF6686,2USB Bluetooth
4G SIM 8.8" 2G RAM Android 7.1 Car DVD Radio Multimedia Player GPS for VW Touareg 2004- 2011 4G MODEM GPS Radio Navigation
8.8'' screen 4G lte Android 7.1 Car DVD multimedia player for VW Touareg Multivan T5 (2002-2011) with WIFI BT GPS canbus SWC
android 8.1 car dvd for Chevrolet Cruze 2013 2014 2015 gps navigation radio video stereo multimedia player octa core IPS screen
Car radio 1024*600 Octa 8 core Android 9.0 for OPEL Astra H Meriva Antara Zafira Veda Agila Corsa Vectra car dvd gps navigation
Quad Core 7 inch Android 7.1 Car DVD Player For Audi A4 2003-2008 Touchscreen Audio Bluetooth In Dash Car Stereo GPS Navigation
Car DVD GPS navigation for Volvo XC60 2009-2012 One din radio GPS Android 6.0 Multimedia Stereo Satnav GPS navigation Headunit
SMARTECH 2 Din Android 8.0 Car Radio GPS Navigation For Ford Focus 2 Focus Mondeo S-max Octa Core 4GB RAM 32GB ROM With CAN-BUS
Android8.0 car DVD Radio Player GPS Navigation System for Skoda Octavia Laura 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
2 Din Android 7.1 Quad Core Car CD DVD GPS Player for Ssangyong Kyron Actyon with WIFI FM Radio 2GB RAM 1024*600 Screen Headunit
7" Android 8.1 for BMW 1 Series E81/E82/E88 2004-2011 car gps navigation,px3,Wifi,3g,2GB RAM,touch screen,steering wheel,canbus
android 8.1 car dvd for Hyundai Verna Solaris 2017 gps navigation car radio video stereo multimedia player octa core IPS screen
TDA7851 Android 8.1 car radio stereo DVD player for forvw Bora Passat Golf Polo LUPO CHICO Seat Skoda free shipping
10.1"Android 9.0 ! Car DVD PC Multimedia DVD Player GPS Navi Stereo Radio Fit SUZUKI GRAND VITARA 2015 2016 2017 2018 3G WIFI BT
Eunavi 1 Din Android 7.1 Car DVD Player GPS Radio Stereo For Dacia/Sandero/Duster/Renault/Captur/Lada/Xray 2 Logan 2G RAM WIFI
Android 7.1 HD1080P 10inch full touch screen car radio gps DVD for Volkswagen vw Golf 7 Left Drive 2013 2014 2015 2016 2017
Android 9 For Mercedes Benz Sprinter B200 W209 W169 B-class W245 B170 Vito W639 2 DIN Car DVD player Radio GPS multimedia stereo
DSP IPS 4G RAM 64G ROM Android 9.0 AV Output CAR DVD PLAYER For Toyota Camry 2007 2008 2009 2010 GPS navigation radio stereo
NaviFly Android 8.1 car stereo radio gps for GEELY Emgrand GX7 EX7 X7 auto dvd multimedia player head unit with WIFI BT 2 din
JOYING Android 8.1 one din 6.2"head unit Octa Core DSP GPS Navigation Support Split Screen 2GB universal stereo Car Radio player
Android 9.0 4G 64G DSP IPS AV Output CAR GPS For KIA sportage 2011-2015 DVD PLAYER navigation stereo screen radio receiver
2 din Android 9.0 Car DVD Player for Hyundai Solaris Verna Accent I25 autoradio CAR GPS Navigation stereo Radio RDS BT WIFI MAP
MARUBOX 2 DIN Quad Core 2G RAM Android 7.1 Car Multimedia Player For SSANGYONG KORANDO 2011-2013 Stereo Radio GPS Navi 7A603DT3
Type
Controller
Brand Name
MEIANDIAN
Type
Dual mode brushless controller
USE
electric bike,EBIKE,electric Scooter
